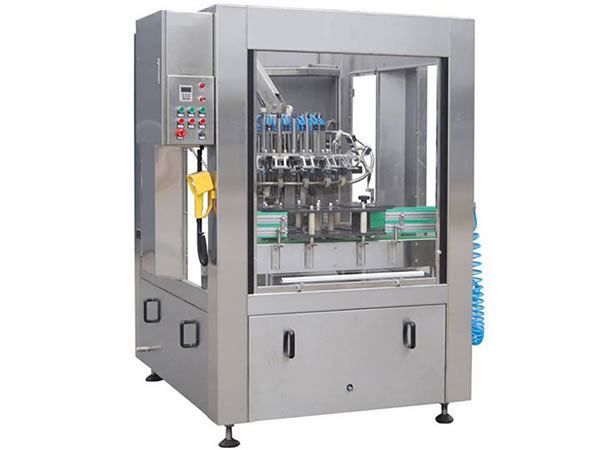

Automatic Bottle Rinser, QS Series

Automatic Bottle Rinser, QS Series
Automatic Bottle Rinser, QS Series Automatic Bottle Rinser, QS Series

The QS series of automatic bottle rinsers continuously sprays and washes bottles with high efficiency. Before being filled with mineral water or other liquids, this rotary bottle washer ensures that plastic and glass bottles of different specifications are thoroughly sanitized using sterile compressed air for use in the beverage industry. An overload clutch on the bottle loading device protects bottles and machines in case of any problems or jams and all stainless steel parts of the rinser are food grade safe.

Features:
  • Machine frame is made from carbon steel square pipe (spec:100 x 50 x δ5mm) and plate (spec:δ30mm).
  • Stainless steel plate: 304 2B (spec: δ2mm)
  • Shield material: stainless steel 304 2B(δ2mm)
  • Reduction box of motor: HANGZHOU JIE
  • Motor: ZHEJIANG XINLING
  • Water pump: CMF4-40T (GUANGDONG LINGXIAO stage pump, power: 1.1KW)
  • Clamp is made from 304 stainless steel, clamp fork from nylon, and washing lift seat from stainless steel 304
  • Sterile air thoroughly cleans the bottle for 4 seconds
  • Frequency converter: Siemens
  • Circuit breaker, contactor and low-voltage components: CHINT

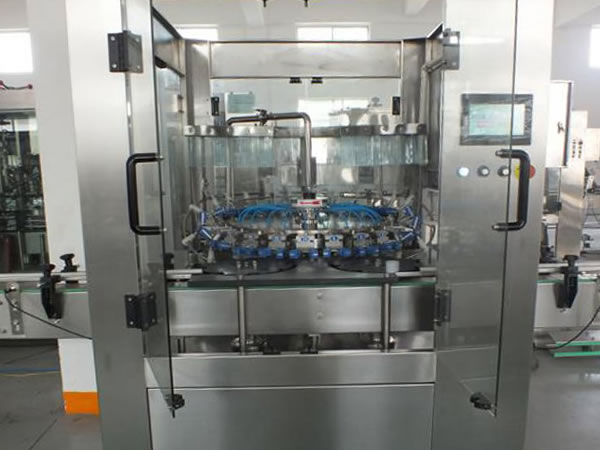

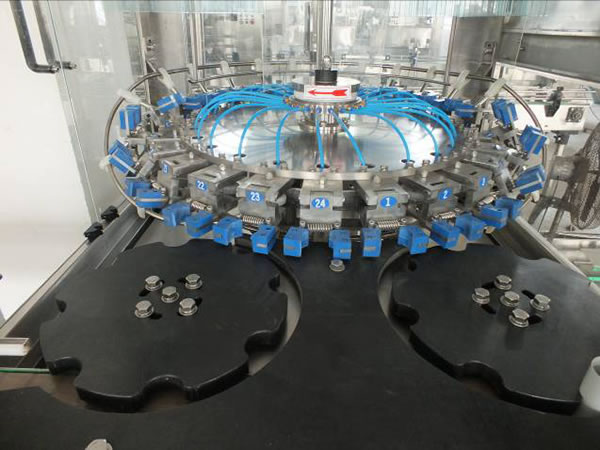

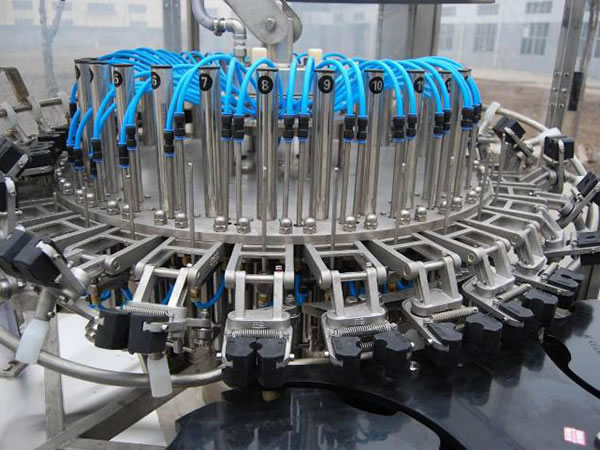

Inside of the machine:
Main performance parameters:
Model parameters QS-12 QS-18 QS-20 QS-24 QS-32
Dimensions 2400mm x 1700mm x 2000mm( L x W x H)
Washing head 12 18 20 24 32
Bottle specifications Diameter : Φ 40mm -Φ110mmheight : 80mm -350mm (according to product customization)
Bottle diameter ≥Φ 18mm
Packing specifications 50ml-1000ml PET bottle, glass bottle
Production capacity( 1L) 2000B/H 3000B/H 3200B/H 4000B/H 5800B/H
Water pressure 0.2-0.4MPa
Power 220V ;50/60HZ
Air consumption 1.3 m³ /min
Water consumption 2.9 m³ /h
Water tank size 1220 x 840 x 450mm
Host power 1.1KW 1.5KW 1.5KW 2.2KW 3KW
Gas supply 0.55MPa-0.65MPa clean and stable source of gas supply

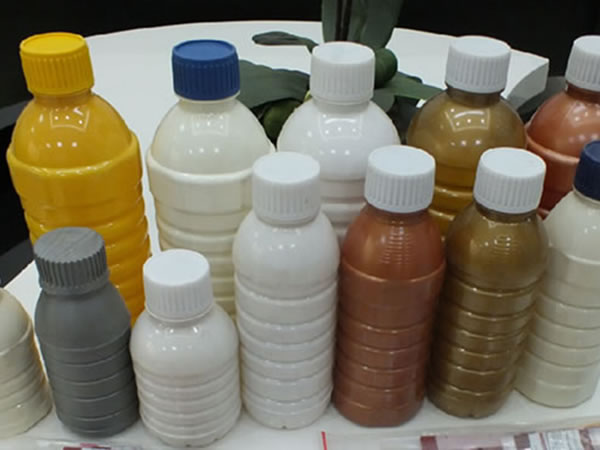

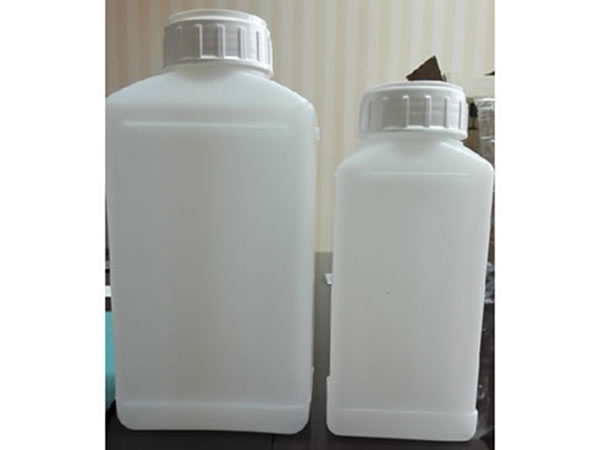

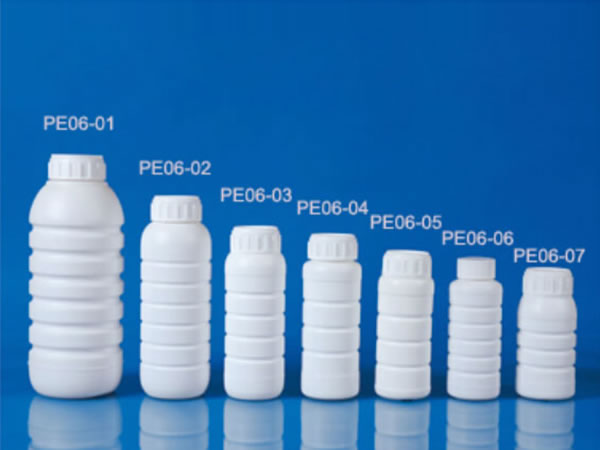

Suitable bottles:
