Horizontal Form Fill Seal Machine, DXD-110

Horizontal Form Fill Seal Machine, DXD-110

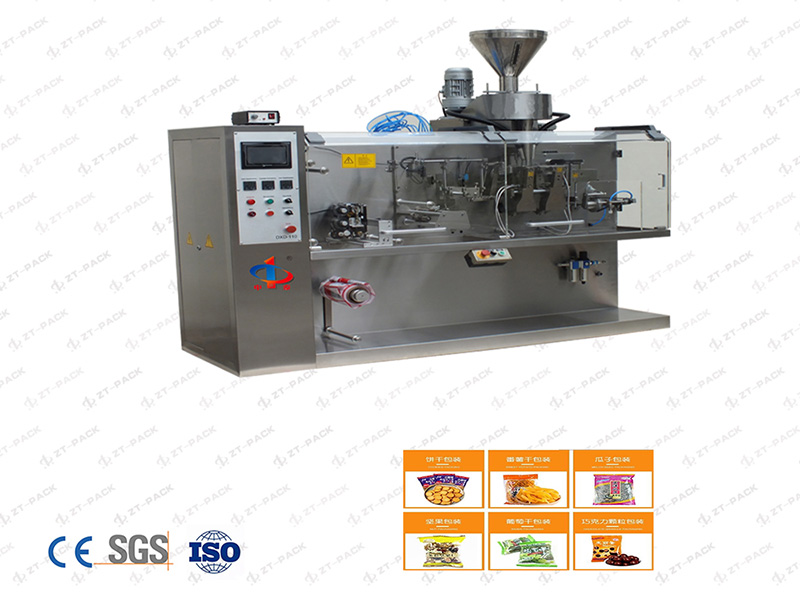

The DXD-110 horizontal form fill seal machine automatically packages liquid, powder, or granular products into single or double sachets. This sealing machine can perfectly seal the bottom, sides, and top of the bagged product for a standing pouch. With PLC control, the pouch packaging line moves efficiently from bagging the powdered, liquid, or granular product to packing the bags into boxes or cartons. This automatic packaging machine, designed to prevent corrosion, features a glass cover which prevents dust from escaping.

Inquiry
Main Parameters:
Packing material Complex film
Packing products Powder, liquid, granule, solid
Production speed 40-80pm
Precision Within +/-1%
Pouch width 50 -110mm
Pouch height 50 -120mm
Max. volume 60ml
Electricity consumption 2kw
Air consumption 0m 3 /min
Voltage 380 V 50Hz
Weight 600 kg
Size 2060mm * 750mm * 1400mm
Features:
  • Used for packaging, food, pesticides, pharmaceutical drugs, fertilizers, and other products, whether in liquid, powder or granular form through simple setting adjustments.
  • Frequency control system uses an imported motor for stable and reliable operation.
  • Servo feeding system controls the feeding screw for fast and stable conveying.
  • Pouch system: Filling and sealing pouches happen separately to easily adjust settings.
  • Product packaging system uses heat-sealing packaging material (polyethylene film, MLCM) to automatically measure, fill, seal, and bag products. Finished products are in a standing bag.
  • Integrated control system uses PLC for high control and reliable operation from one project to the next. Photoelectric sensor, coder, and proximity switch protect the product and machine.
  • Servo pulling bag system uses PLC positioning for high accuracy and a large torque for pulling speed.
Process

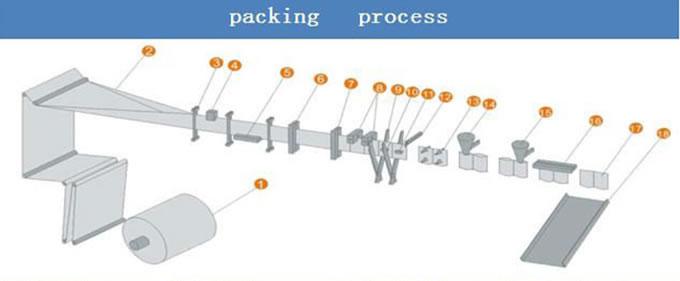

1. Film unwind
2. Bag forming
3 Film guide
4. Photocell
5. Bottom seal
6. First vertical seal

7. Second vertical seal
8. Tear notch
9. Double cutting
10. Pouch catching
11. Pouch catching
12. Pouch pulling

13. Pouch opening
14. Filling I
15. Filling II
16. Top Seal
17/18. Finished Product Outlet

Configuration
No. Name Origin Brand
1 Contactor France Schneider
2 Thermal France Schneider
3 Circuit Breaker France Schneider
4 Frequency Convertor France Schneider
5 Button France Schneider
6 PLC France Schneider
7 Servo System France Schneider
8 Servo Motor France Schneider
9 Power Switch France Schneider
10 Fan Taiwan SUNON
11 Sensor Japan SUNX
12 Proximity Switch South Korea Autonics
13 Encoder Japan Omron
13 Magnetic Braker Germany KEB
15 Vacuum Ejector Japan Convum
