Capping Machine

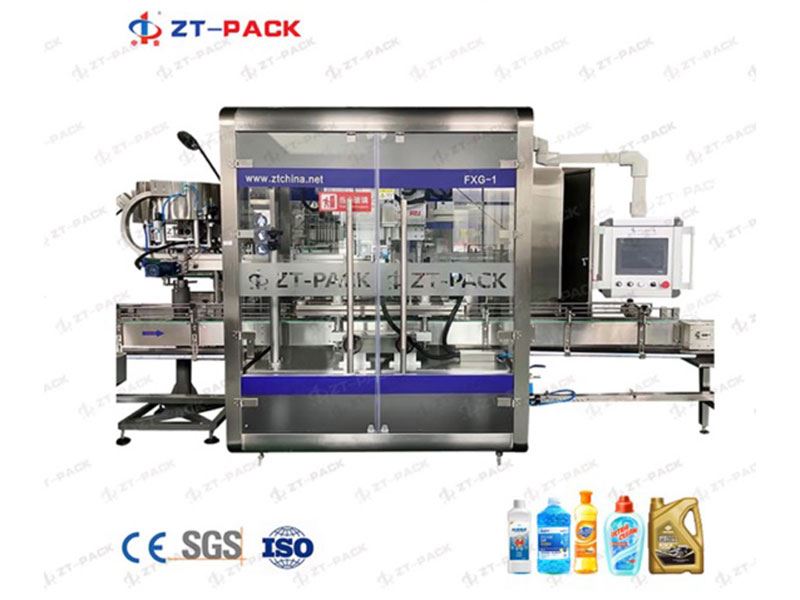

FXG-1 Fully Automatic Bottle Capping Machine

Fully Automatic Bottle Capping Machine
  • Production Capacity: 20sets/Month
  • Payment Terms: L/C, T/T, Western Union
  • Packaging: Bottles
  • Automatic Grade: Automatic
  • Packaging Material: Plastic
  • Application: Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Vegetable, Fruit, Snack, Rice, Flour, Seasoning
  • Usage: Outpacking
  • Type: Cap Sealing Machine
Basic Info.
Model NO. FXG-1 Packaging Material Mechanical Properties Flexible Container Sealing
Material Type Liquid Power 2.5kw
Air Pressure 0.6-0.8MPa Cap Diameter 30-80mm
Cap Height 15-50mm Capacity 2000bph
Weight 800kg Machine Material SS304
Certificate Ce, ISO, SGS After-Sale Service Free Spare Parts, Field Installation
Trademark ZT-PACK Transport Package Wooden Packing Suitable for Exporting
Specification 2195*1300*2300mm Origin China, Jiangsu
HS Code 8422303090
Description

The fully automatic bottle capping machine is suitable for automatic capping of bottles with capacity ranges from 1L to 5L, it consist of lid unscramble, lid feeder, lid pressing system, as well as motion mechanism, conveying system and control system. Compared to ordinary capping machine that needs to be paused during the process for preventing the material from splashing out of the bottle, this bottle capping machine can implement the lid pressing process continuously and automatically.

Parameters
1 Capacity ≤2000 bottles/hour
2 Percent of pass ≥99%
3 Applicable Bottle Type Round bottle:Φ50-140mm height:230-340mm
Flat bottle:length 45-250mm width45-140mm height90-340mm
4 Cap's specification Φ30-65mm H15-30mm
5 Air pressure 0.6~0.8MPa
6 Power Source ~380V 50Hz
7 Power 2.5KW
8 Weight 800Kg
9 External Dimension 2195×1300×2300mm(L×W×H)
