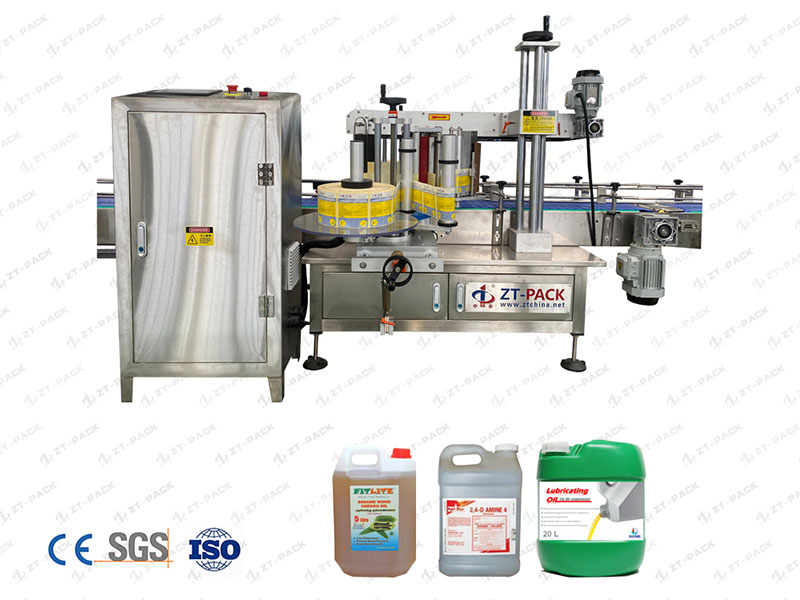

5L-30L Flat Drum Labeling Machine

5L-30L Flat Drum Labeling Machine
Inquiry
  • Self Adhesive Type Labeling Machine for Flat + Round Bottles
  • Label Type: Self adhesive
  • Bottle shape: Round and flat
  • Bottle size: can be adjustable
  • Automatic double side front and back self adhesive labelling machine for bottles is designed to handle a wide range of self-adhesive labelling applications with high speed and accuracy. The labeling machine comes with single, twin or tri-labelling head configuration, enabling it to handle front, front and back labels, as well as multi-panel and even full wrap labels for a wide range of container materials and shapes.
  • Two label dispensers operate independently for one-sided labeling or operate simultaneously for two-sided labeling, which allows for different sizes of label application on both sides. An optional wrap station is offered for partial wrap or full wrap labels as well as tamper evident or top labels.
  • Front and back labeling machine is equipped with an automatic chain aligner for product orientation, ensuring correct positioning of the containers before the label is applied.
  • The container position is adjusted by the spring loaded motorized chain tensioner before it moves under the head gripper where it is released. The head gripper is mounted on a vertical stainless steel spindle system for easy adjustment when needed. Additional features include stainless steel construction and anodized components, world famous electronic components, servo motor drive, powered assist web take up, PLC control and user friendly HMI.
  • The self-adhesive labeling equipment is suitable for the surface labeling of the square, flat and round bottles, which is widely used for applying labels on packaging of medicine, household chemicals, foodstuff, and so on.
Suitable for labeling
Features
  • Automatically performs 1 or 2 sided-labeling, or wrapping around on round bottles
  • Adopts PLC control system
  • Use a large easy-operate touch screen
  • Comes with label sensor & object sensor
  • Can be optionally equipped with coding machine or printing machine.
  • High labeling speed and high precision
Specifications:
Production capacity 2400-6000 labels/hour (depending on the bottle size and the label length and width)
Bottle volume 1L and less for round bottles 5L and less for the flat bottles
Bottle size L 50-200mm*W 30-200mm*H50-300mm
Label width (round bottle) Height 20-130mm; length 10-220mm
Label size (flat bottles) Height 20-260mm; length 20-150mm
Accuracy ±1mm (excluded the bottle accuracy and label accuracy)
Label roller inside / outside diameter ⌀76.2mm / ⌀340mm
Suitable label Transparent optional; Translucent cellophane
Power supply 220V, 50Hz, 2.4kW
Machine size 3000*1500*1850mm(L*M*H)
Machine weight Around 380kg

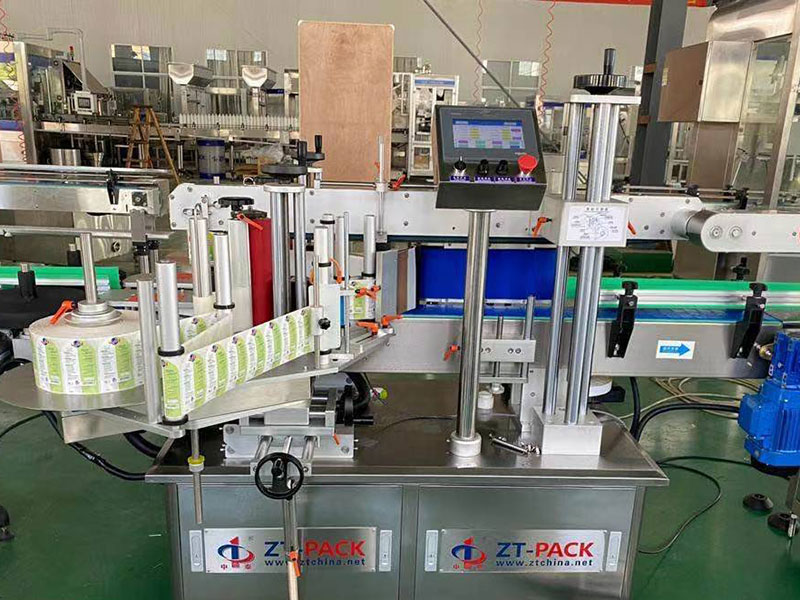

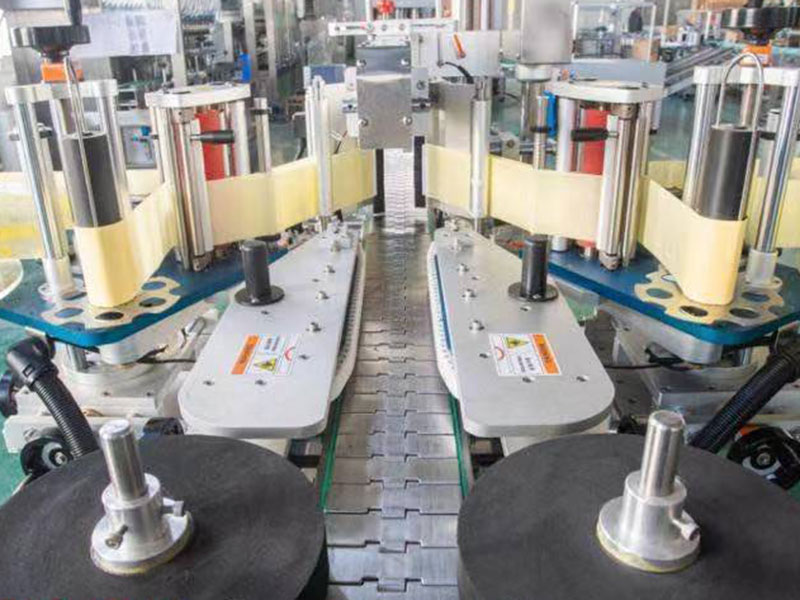

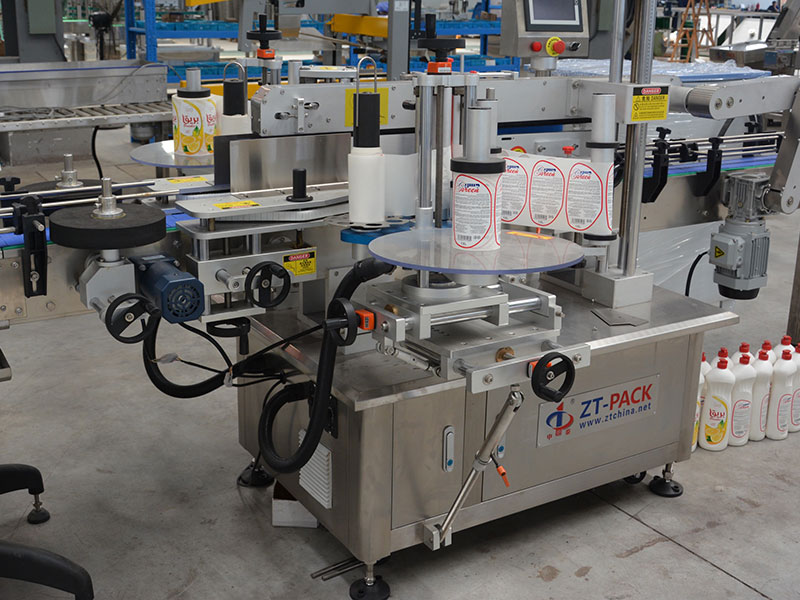

Machine details
