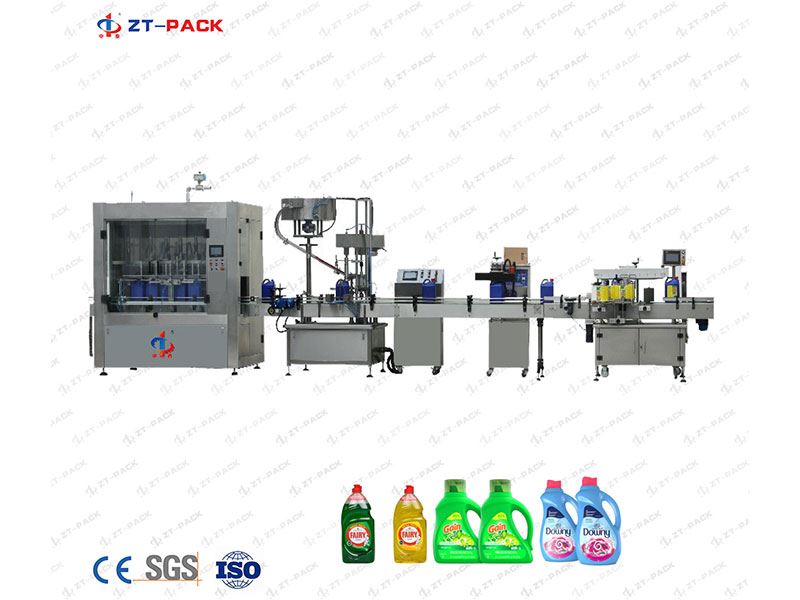

1L-5L Laundry Detergent Filling Line
Suitable bottles
- Suitable for filling: Laundry detergent, laundry soap, and other laundry care products
- Filling system: Piston
- Bottle type: Plastic jerry can
- Bottle shape: Round & flat
- Bottle size: 0.5L -5L
- Accuracy: 0.2% (piston type)
- Capacity: 1L: 1000 -5000BPH/ 5L: 600-2000BPH
- High adaptability: No parts need to change when bottle size varies
Specifications
| Model | ||
| Dimension | 2200(L)x1100(W)x2200(H) mm | 2400(L)x1100(W)x2200(H) mm |
| Filling head | 6 | 8 |
| Capacity (1L) | 1800B/H | 2200B/H |
| Capacity (5L) | 700B/H | 1000B/H |
| Power | 3kW | 4kW |
| Suitable bottle | Round bottle: Height: 100-320mm Diameter: ⌀60-140mm Flat bottle: Length: 100-200mm Width: 40-80mm Height: 150-300mm Neck diameter: ≤⌀30mm, ≥⌀30, customized | |
| Filling range | 1000ml-5000ml | |
| Air pressure | 0.6Mpa-0.8Mpa | |
| Power supply | 380V, 50Hz/ 60Hz | |

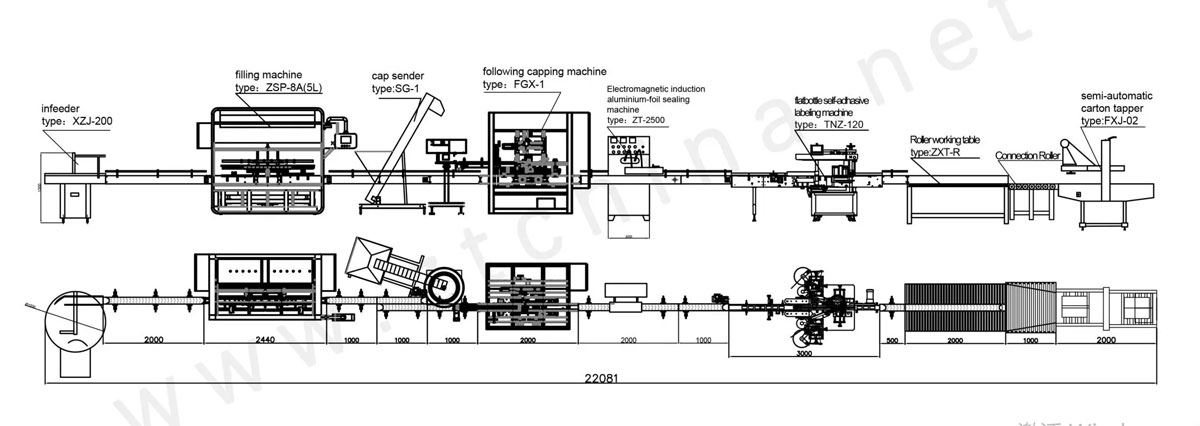

Layout drawing
