5L-20L Drum Gallons Filling Line (Corrosive Liquids Packing)

5L-20L Drum Gallons Filling Line (Corrosive Liquids Packing)

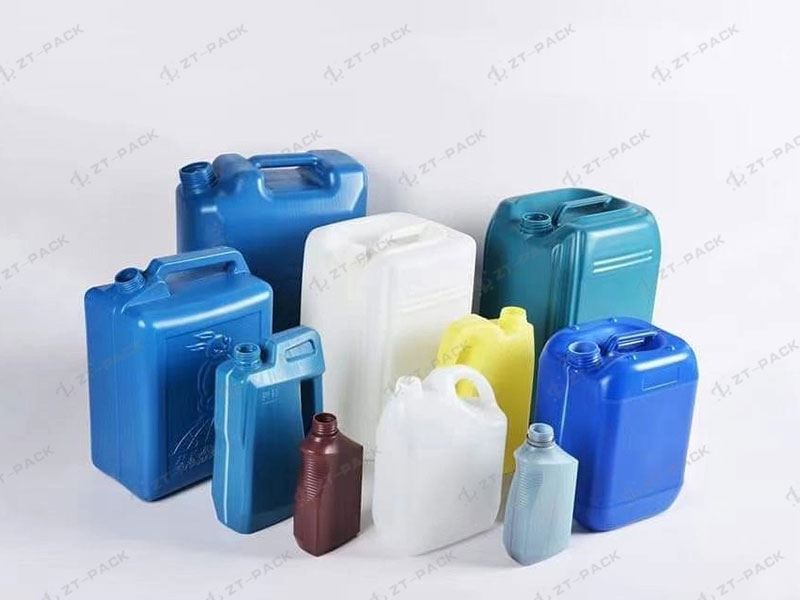

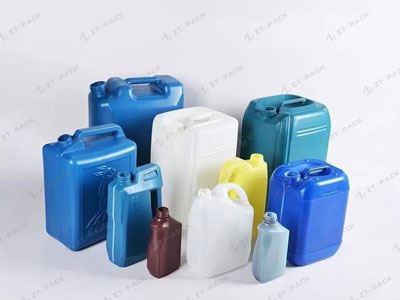

Suitable bottles
  • Suitable for packing: Bleach, disinfecting mist, toilet cleaner, acid, chlorine, sulfuric acid, 84 disinfectant, etc.
  • Filling range: 5L-20L
  • Capacity: 200-600BPH
  • Filling system: Gravity filling

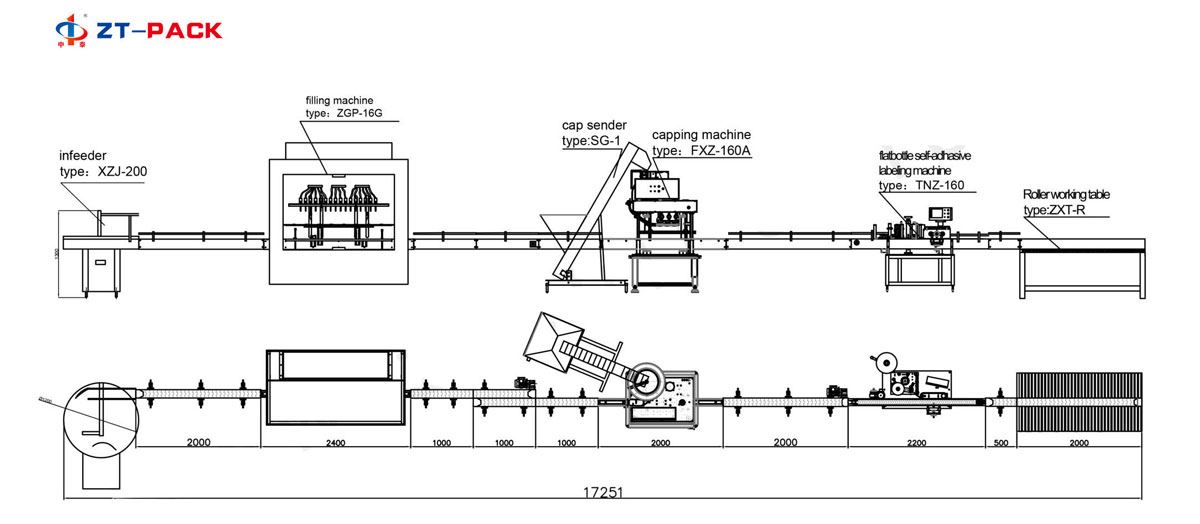

  • Machines included (optional): Filling machine - capping machine - induction sealing machine - aluminum foil detector and rejector - labeling machine - date printer - palletizer
Inquiry
Specifications
Model ZGP-6 ZCP-8
Dimensions 2200x1600 x2400mm 2400 x1600 x2400mm
Filling head 6 8
Capacity (5L) 550 B/H 650 B/H
Capacity (20L) 400 B/H 500 B/H
Power 2kW 2.5kW
Suitable bottle Length: 160-360mm
Width:100-300mm
Height: 250-500mm 		Length: 160-360mm
Width:100-300mm
Height: 250-500mm
Filling system Gravity filling system
Barrel neck diameter ≥⌀ 40mm
Filling error ≤±1% F.S
Filling range 5L-20L
Air pressure 0.6Mpa-0.8Mpa
Power supply 220V, 50Hz/60Hz
