50-1000ml Automatic Filling Machine (for Corrosive Liquid), ZGP-16G

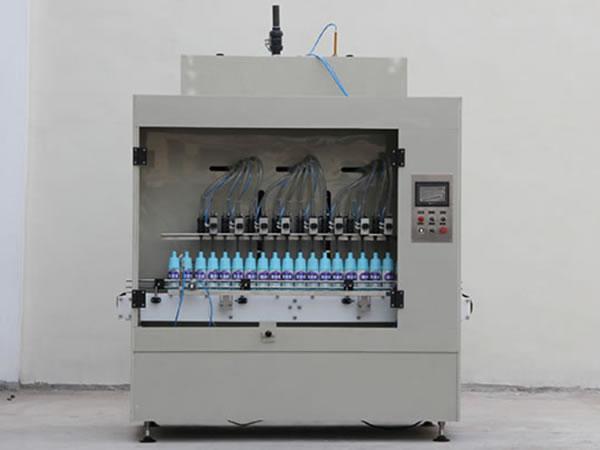

50-1000ml Automatic Filling Machine (for Corrosive Liquid), ZGP-16G

The 50-1000ml automatic liquid filling machine for corrosive liquid bottles containers that are less than 1000ml in volume. With precise and accurate filling, the liquid filling machine processes strong acids and bases such as Harpic, Clorox, and bleach for chemical or cosmetic industries. Made of nonmetallic, anti-corrosion material, the bottle filling machine does not bubble up or overflow.

Main performance parameters:

Capacity: ≤5000 bottles/hr (100ml water as medium)
Bottle type: Dimensions: Φ33 - 100mm, Height 80 - 280mm
Volumes: 50-1000ml
Precision: ±1%
Air pressure: 0.6MPA
Power source: ~220V
Power: 1.5KW
Material Feeding Connector: DN32 Flange
External Dimensions: 2300 x 710 x 2200mm (L x W x H)
Weight: about 650Kg
Production line height: 900mm±50mm
Bottle feeding direction: From left to right

Features:

Anti-corrosive so can be used with strong acids and bases
Easily adjustable between models
Imported components from trusted brands for reliability and long service life
Easy to clean and low noise
Automatic bottle feeding and counting
Filling heads can be finely adjusted for accurate filling
Made of nonmetallic material to prevent corrosion
PLC and touch screen control

Filling machine models:

Model	ZGP - 6G	ZGP - 8G	ZGP - 10G	ZGP - 12G	ZGP - 16G
Dimensions	2000 x 710 x 2200mm (L x W x H)		2200 x 710 x 2200mm (L x W x H)		2300 x 710 x 2200mm (L x W x H)
Filling head	6	8	10	12	16
Capacity (1L)	1800B/H	2000 B/H	2800 B/H	3200 B/H	4500 B/H
Power	1KW	1 KW	1KW	1.5KW	1.5KW
Type of bottle	Diameter : Φ 40mm --Φ 100mm Height : 80mm -- 280mm
Filling accuracy	≤100ml : + -1.5ml 100-500ml : + -2ml 500-1000ml : + -3ml
Neck diameter	Φ 18mm
Filling range	50ml--1000ml
Air pressure	0.6Mpa
Power supply	220V, 50HZ

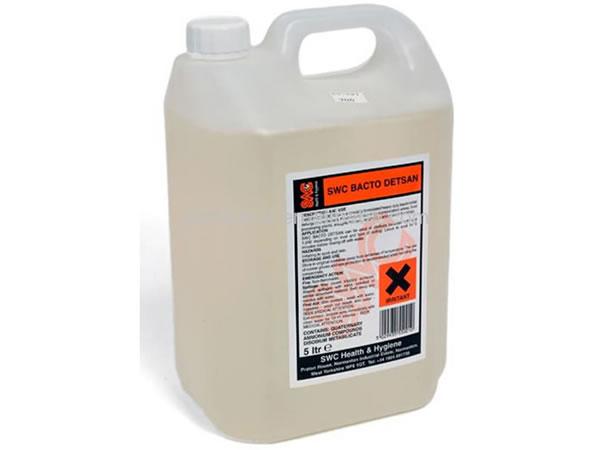

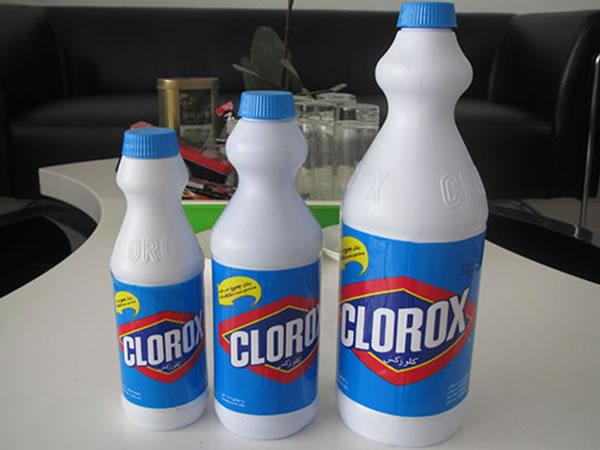

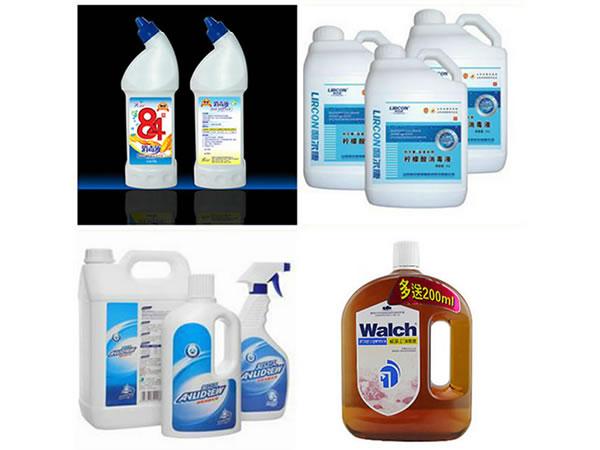

Suitable bottle samples:

Configuration:

No.	Item	Supplier	Brand
1	Touch screen	Taiwan	WEINVEIW
2	PLC	Japan	Mitsubishi
3	Photo sensor for bottles	Japan	OPTEX
4	Solenoid valve	Taiwan	SHAKO
5	Level button	USA	JOHNSON CONTROLS
6	Angle seat valve	Jointed	BURKERT
7	Other devices	Taiwan	Airtac
8	Power button	France	Schneider
9	Button	France	Schneider
10	Frequency converter	France	Schneider
11	Bottle-transport motor	China	Huangyan
12	Speed reducer	China	Jiao xing
13	Relay	Japan	Omron
