4L-30L Agrochemicals Jerry Can Filling Line

4L-30L Agrochemicals Jerry Can Filling Line

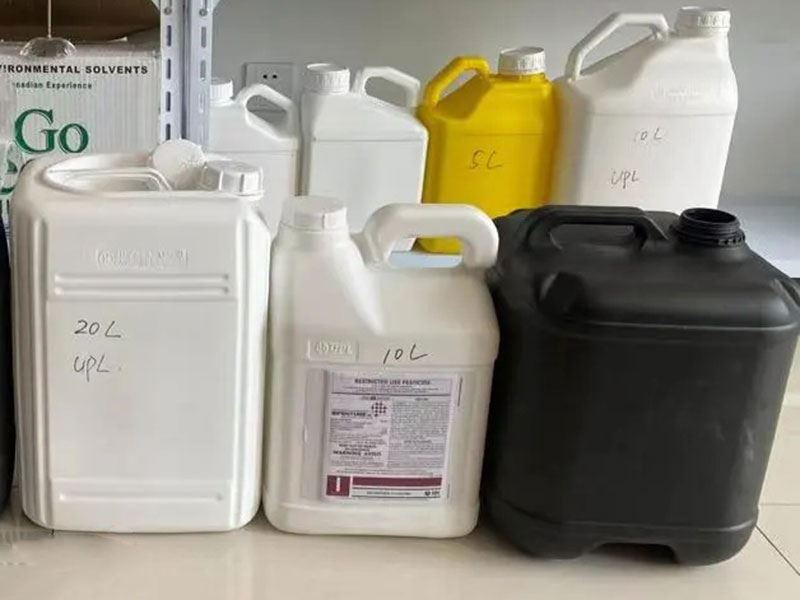

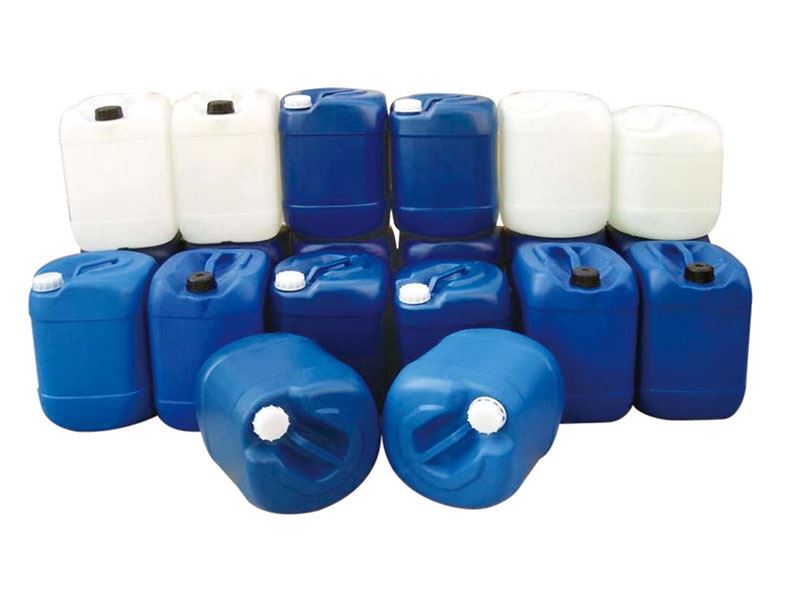

Suitable bottles
  • Suitable for filling: Pesticide, fertilizer, suspending agents, liquids, emulsifiable concentrates, water-soluble fertilizers, acaricide, Fungicide, herbicide, EC, SC, SL etc.
  • Filling range: 4L-30L
  • Capacity: 200BPH-600BPH (20L)

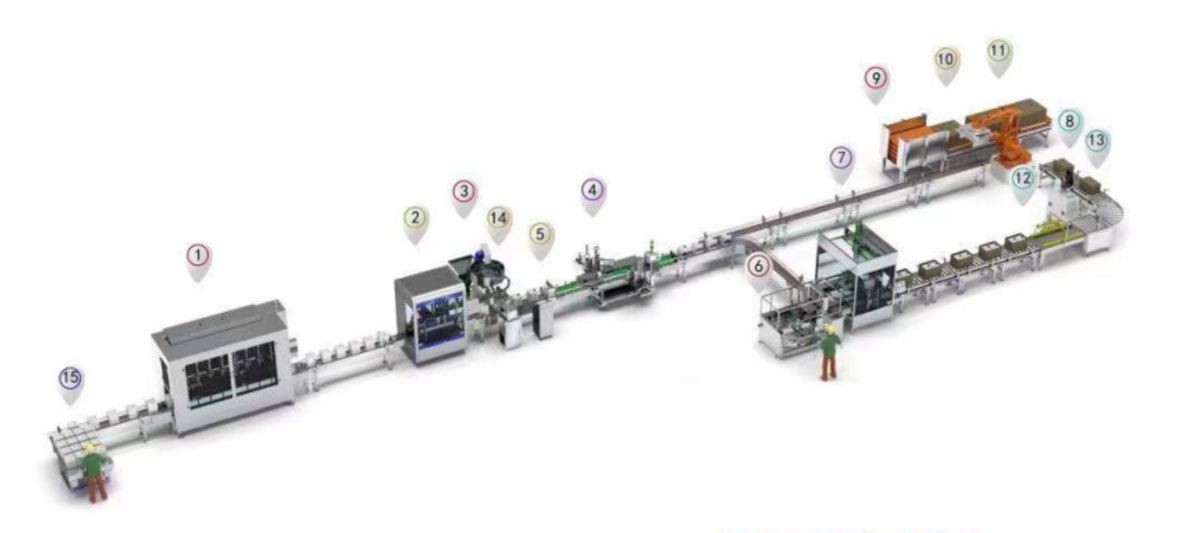

  • Machines included (optional): Filling machine - capping machine - induction sealing machine - aluminum foil detector and rejector - labeling machine - date printer - palletizer
Inquiry
Features
  • This line is suitable for the packaging of agrochemicals products .
  • The whole line can be operated by 2-3 people, which reduces labor intensity and labor cost.
  • The filling speed of the whole line is 200-600 bottles/hour, which can be customized according to requirements.
  • The average filling accuracy is ±0.1%, the accuracy is accurate, and unnecessary waste is reduced.
  • The whole line is made of stainless steel, with beautiful appearance and high appearance. Customers can visit it.
Specifications
Model ZCJ-4 ZCJ-6
Dimensions 3000x1700x2300mm 3600x1700x2300mm
Filling head 4 6
Capacity (10L) 300 B/H 350 B/H
Capacity (20L) 250 B/H 300 B/H
Power 2kW 3kW
Suitable bottle Length: 160-360mm Width:100-300mm
Height: 250-500mm 		Length: 160-360mm Width:100-300mm
Height: 250-500mm
Barrel neck diameter ≥Ø 40mm
Filling error ≤±0.5%F.S
Filling range 10kg-30kg
Air pressure 0.6Mpa-0.8Mpa
Power supply 220V; 50Hz/ 60Hz

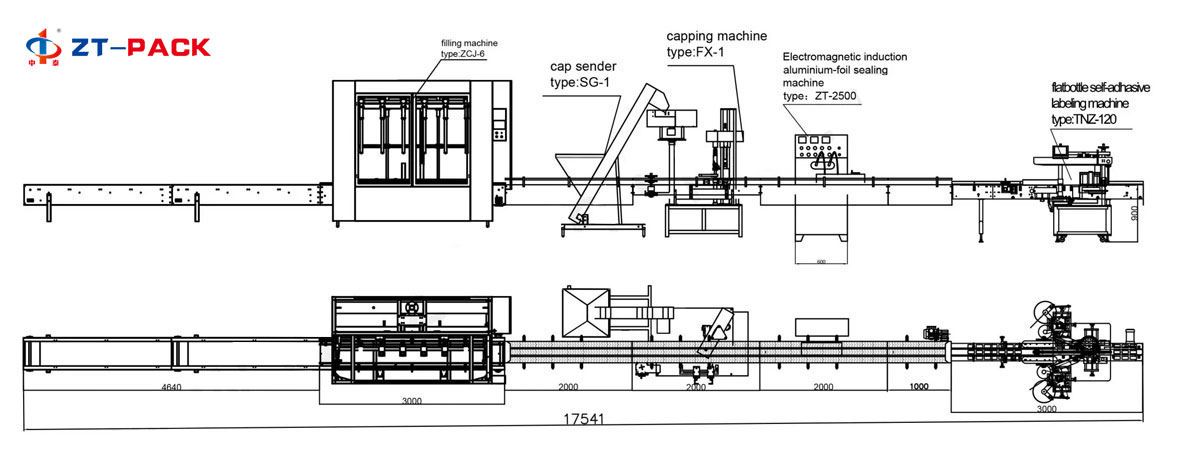

Layout drawing
