30ml-200ml Agrochemicals Filling Line

30ml-200ml Agrochemicals Filling Line
  • Suitable for filling: Pesticide, fertilizer, suspending agents, liquids, emulsifiable concentrates, water-soluble fertilizers, acaricide, fungicide, herbicide, EC ,SC , SL etc.
  • Filling range: 30ml-200ml
  • Bottle shape: Round & flat Bottles

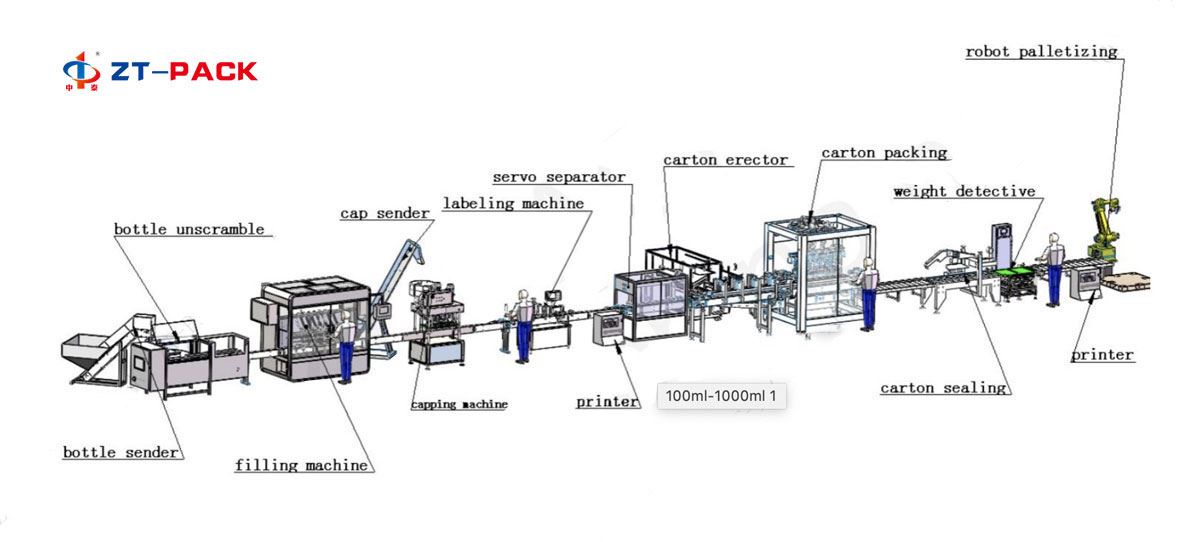

  • Machines included (optional): Intelligent bottle unscrambler, intelligent filling and capping machine, online checkweighing and rejection device, aluminum foil sealing machine, inkjet printer, two-dimensional code traceability system, high-speed unpacking machine, partitioning machine, intelligent packing machine, intelligent palletizer, robotic palletizer
Inquiry
Specifications
Bottle type Round bottle diameter: 40-100mm,
height: 80-280mm Flat bottle (40-100mm)x (40-100mm)x(80-280mm)(LxWxH)
Diameter of bottle opening 15mm-60mm
Filling range 30ml-200ml
Accuracy 0.2%
Air pressure 0.6-0.8 MPA
Power source 380V, 50Hz/ 60Hz
Production line height 850mm±50mm (can be designed accordingly)
Filling materials Viscous non corrosive liquids, oil, chemical, food, cleaning liquids... etc.
Bottle feeding direction From left to right (or mirror type)
