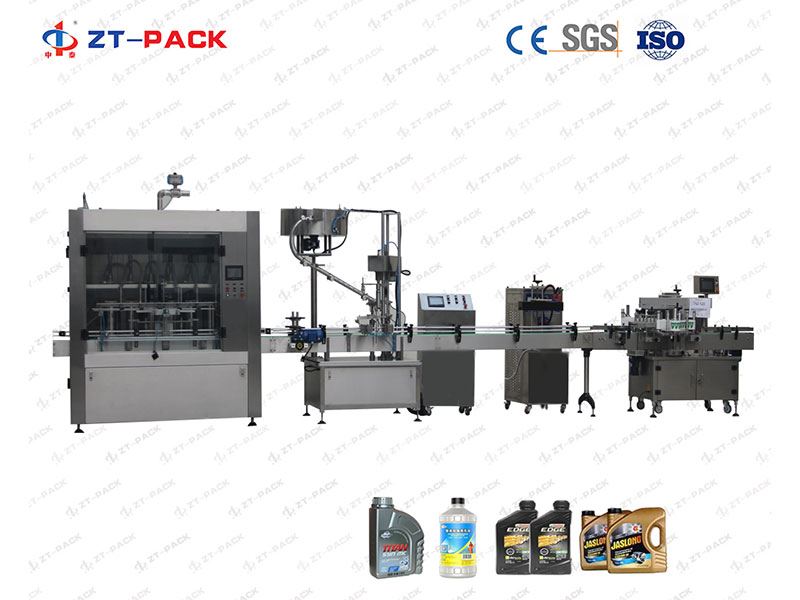

0.5L-7L Engine Oil Filling Line

0.5L-7L Engine Oil Filling Line
Suitable for filling
  • Suitable for filling: various oils
  • Filling system: Piston or flow meter (optional)

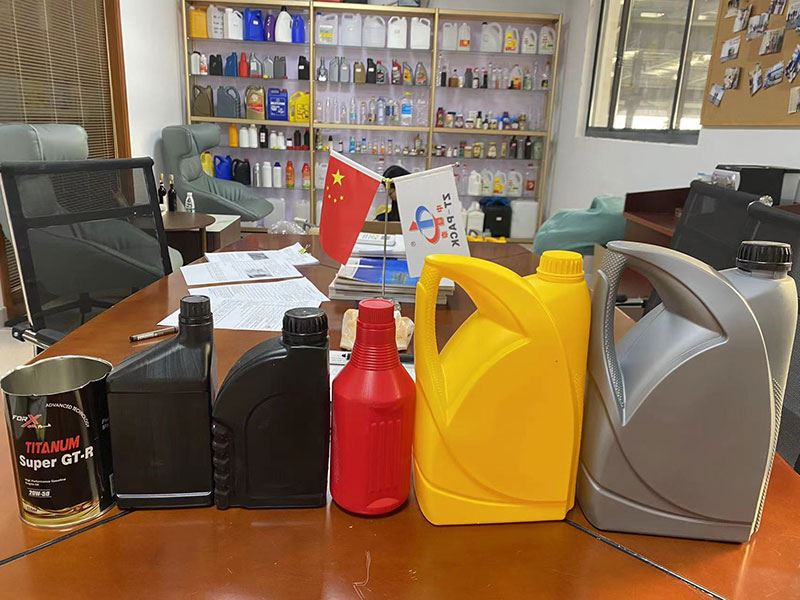

  • Bottle type: Plastic jerry can
  • Bottle shape: Round & flat
  • Filling range: 0.5L -5L (piston type)/ 1L-7L (flow meter type)
  • Accuracy: 0.2% (piston type)/ 0.5% (flow meter type)
  • Capacity: 1000 - 5000BPH (1L)/ 800-2500BPH (5L)
  • High adaptability: No parts need to change when bottle size varies
  • Machines included: Bottle unscramble - filling machine - capping machine - induction sealing machine - aluminum foil detector and rejector - labeling machine - date printer - carton packaging machine - palletizer
Inquiry
Engine oil filling lines with different capacities can be chosen
6 Filling nozzles 8 Filling nozzles 10 Filling nozzles 12 Filling nozzles
Piston system Flow meter system
1 L 1,300 BPH 1 L 2,300 BPH 1 L 3,000 BPH 1 L 4,000 BPH
4 L 700 BPH 4 L 1,000 BPH 4 L 1,800 BPH 4L 2,400 BPH
5 L 600 BPH 5 L 900 BPH 5 L 1,500 BPH 5 L 2,200BPH
7 L 400 BPH 7 L 600 BPH 7 L 1,200 BPH 7 L 1,800 BPH

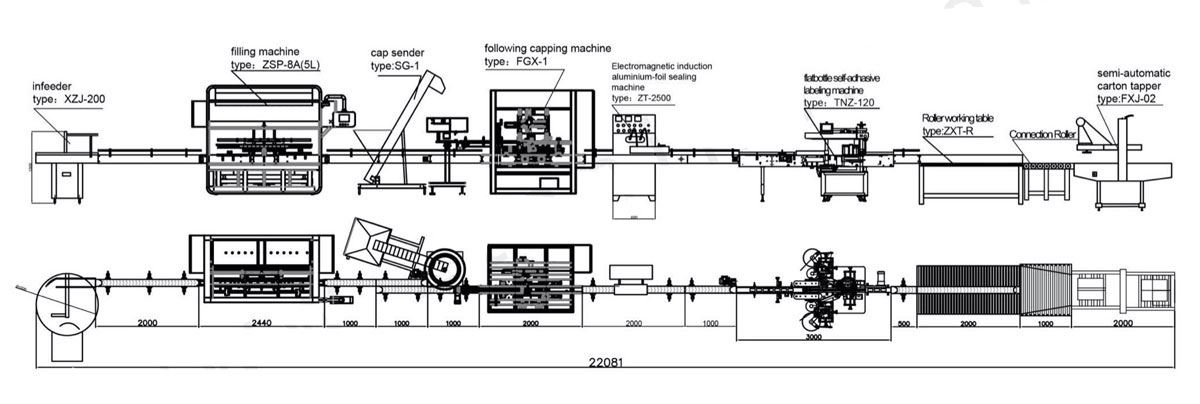

Layout drawing
