1-5L Lube Oil Packaging Machine

1-5L Lube Oil Packaging Machine
1-5L Lube Oil Packaging Machine 1-5L Lube Oil Packaging Machine

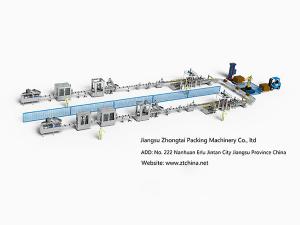

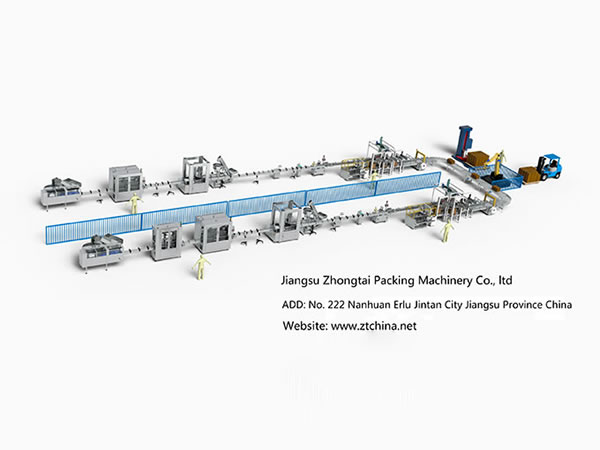

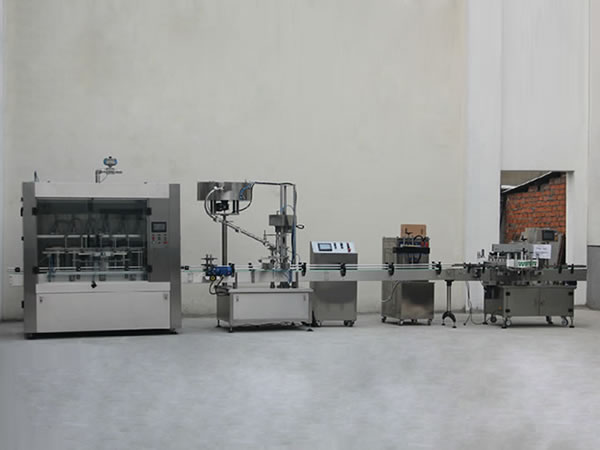

1-5L filling,capping and labeling line
The 1.5L lube oil packaging machine combines filling and capping in one machine to bottle cooking oil, lube oil, auto oil, and other high viscous liquids. The oil packaging production line can process different bottles holding less than 5L and functions as a complete production line with conveyors, labeling, filling, sealing, and packaging into cartons.

Main performance parameters:
  • Range: 1-5L
  • Production capacity: 2000-800 bottles/hour
  • Material processed: cooking oil, lube oil, engineer oil, auto oil and more
  • Capacity: 1000ml ≤ 2000b/h; 5000ml ≤800b/h;
  • Bottle type: round bottle's diameter: Φ60-140mm; height: 100-340mm(L x W x H) flat
  • Bottle's opening diameter: ≥φ25mm
  • Filling range: 1000-5000ml
  • Precision: (200ml) ±1%;(200ml-1000ml)±0.5%
  • Air pressure: 0.6~0.8 MPA
  • Air consumption: 120L/minute
  • Power source: ~380V, 50HZ
  • Power: 4.5KW
  • Production line height: 900mm ±50mm
  • Bottle feeding direction: From left to right
Features:
  • Only three people (one operator, two assistants) are needed to operate this production line.
  • Lube oil filling machine is precise with a high qualified rate. Production capacity can be increased by up to 30%.
  • Double-sided self-adhesive labeling machine processes round and flat bottles.
  • Falling style packaging machine can process small quantities of heavier bottles that other machines can't.
  • The automatic carton opening and sealing machines are easy to operate and speed up production.

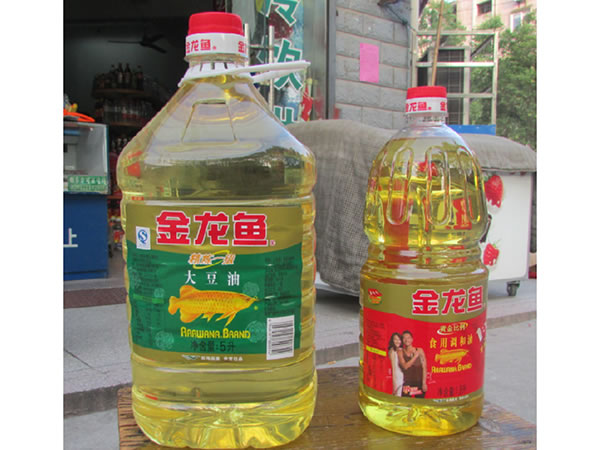

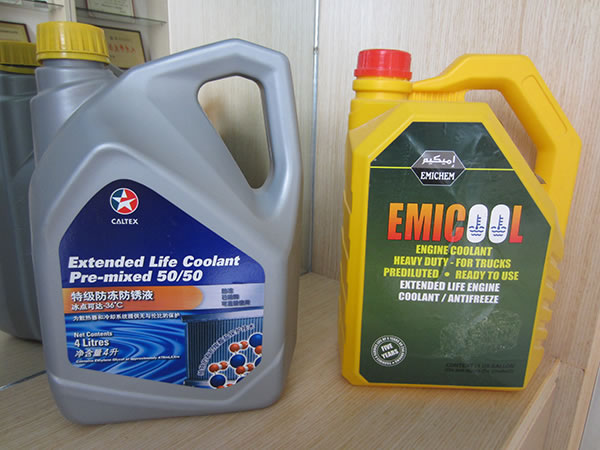

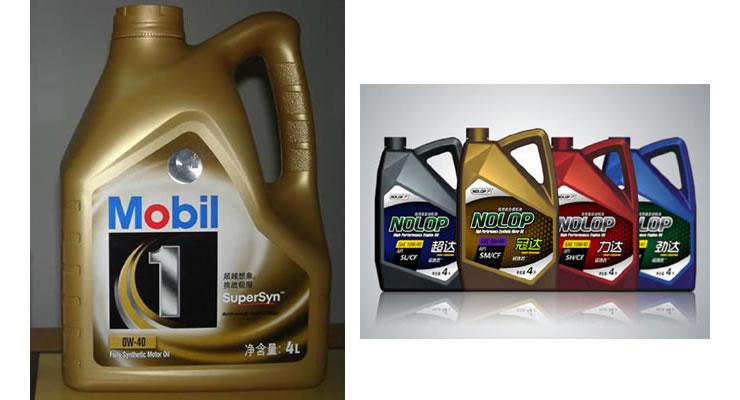

Suitable bottles:
