50-1000ml Lube Oil Packaging Machine(for Viscous Liquid)

50-1000ml Lube Oil Packaging Machine(for Viscous Liquid)
50-1000ml Lube Oil Packaging Machine(for Viscous Liquid) 50-1000ml Lube Oil Packaging Machine(for Viscous Liquid)

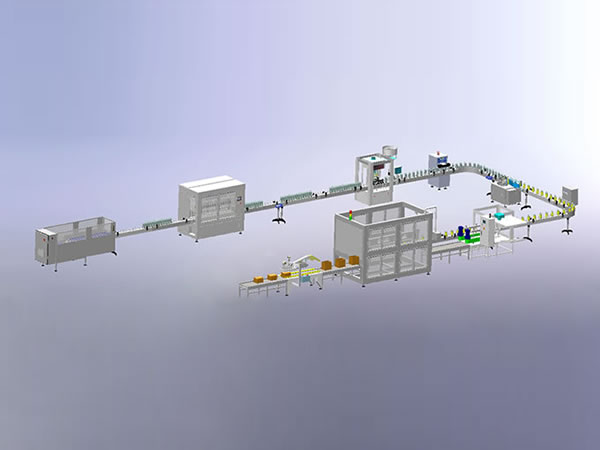

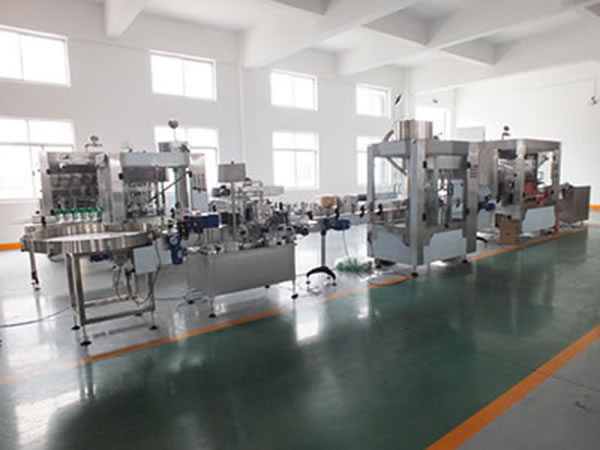

The 50-1000mL lube oil packaging machine for viscous liquid processes bottles less than 1,000ml in volume. With an automatic bottle unscrambler, filling machine, rotary capping machine, gluing/self-adhesive labeling machine, the oil packaging line is a complete production line that packages and seals cartons. This fast and efficient bottle packaging machine processes cooking oil, lube, oil, auto oil, and other high viscous liquid and applies anti-theft caps.

Main performance parameters:
  • Capacity: 50ml -100ml ≤ 6000b/h; 500ml ≤5000b/h; 1000ml≤4500b/h
  • Bottle type: Round bottle Φ40-100 mm, height 80-280 mm, flat bottle (40-100mm)*(40-100mm)*(80-280mm)(L x W x H)
  • Bottle's diameter opening: ≥φ25mm
  • Filling range: 50-1000ml
  • Precision: (200ml) ±1%;(200ml-1000ml)±0.5%
  • Air pressure: 0.6~0.8 MPA
  • Power source: ~380V, 50HZ
  • Production line height: 900mm±50mm
  • Filling materials: cooking oil, lube oil, car oil and more
  • Bottle feeding direction: From left to right
Features:
  • Only three people (one operator, two assistants) are needed to operate this production line.
  • Fast and efficient unscrambler suitable for flat and round bottles and easy to adjust for size. Fallen bottles will be returned to the elevator and the unscrambler will alert operator to unfilled bottles.
  • Servo volumetric filling machine is highly precise. Filling nozzles automatically adjust to different bottles and reduce foam.
  • The rotary capping machine is 100% qualified and rejects dented or broken caps.
  • The automatic carton opening and sealing machines are easy to operate and speed up production.
  • Production capacity: 50ml-1000ml ≤ 12000b/h; 800ml ≤6000b/h; 1000ml≤4800b/h
  • Range: 50ml-1000ml
Suitable bottles:
