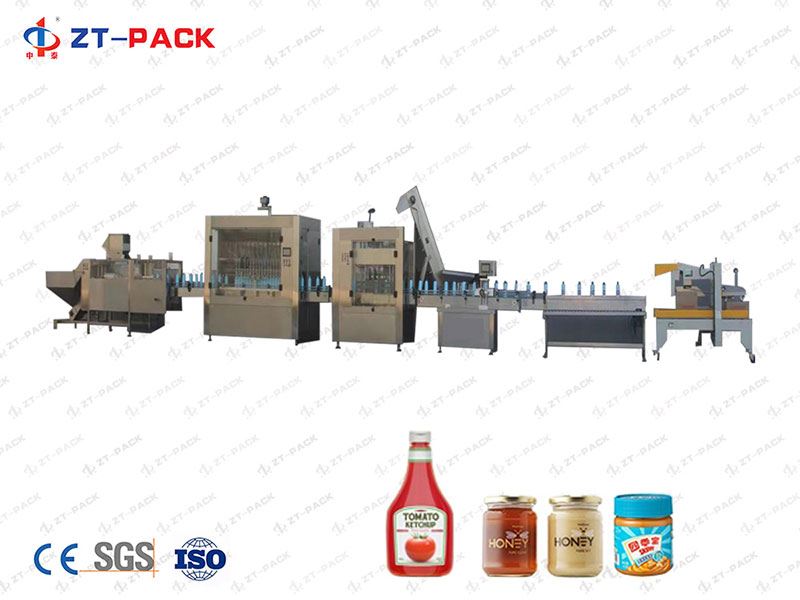

Sauce/ Paste/ Ketchup/Jam Bottle Filling Line

Sauce/ Paste/ Ketchup/Jam Bottle Filling Line
Suitable bottles
  • Filling system: Servo piston / rotor pump
  • Bottle type: Plastic / glass
  • Bottle shape: Round & flat
  • Filling range: 100ml-1000ml/ 500ml-5000ml
  • Filling accuracy: 1%
  • Capacity: 1000BPH-6000BPH (1L)
  • High adaptability: No parts need to change when bottle size varies.

Automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.

Inquiry
Specifications (100ml-1000ml)
Model ZSP-6A ZSP-8A ZSP-10A ZSP-12A ZSP-16A
Dimensions 2200(L)x1100(W)x2200(H) mm 2300(L)x1100(W)x2200(H) mm 2400(L)x1100(W)x2200(H) mm
Filling head 6 8 10 12 16
Capacity (1L) 1800B/H 2400B/H 3000B/H 3600B/H 4800B/H
Power 2.2kW 2.2kW 2.2kW 3kW 3kW
Suitable bottle Diameter: Ø 40mm-100mm Height: 80mm-280mm
Neck diameter Ø 18mm
Filling range 50ml-1000ml
Air pressure 0.6Mpa-0.8Mpa
Power supply 380V, 50Hz/60Hz

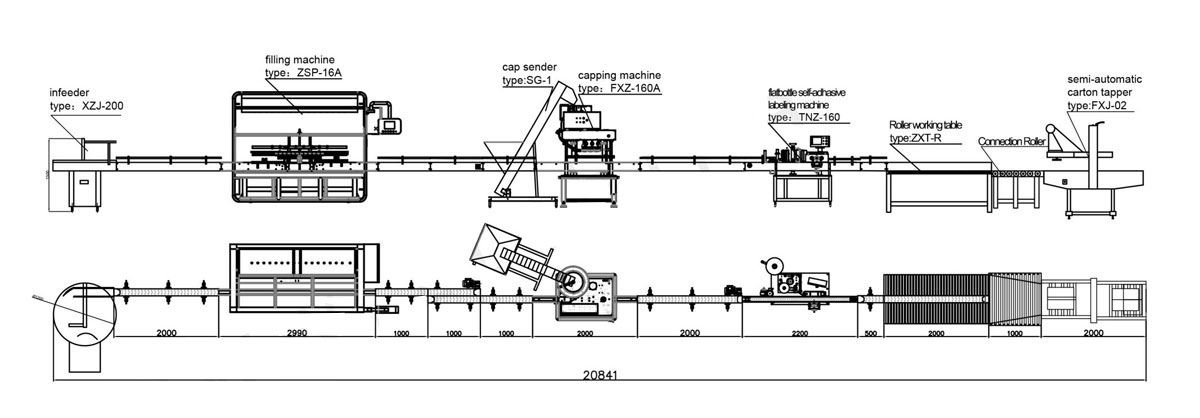

Layout drawing
