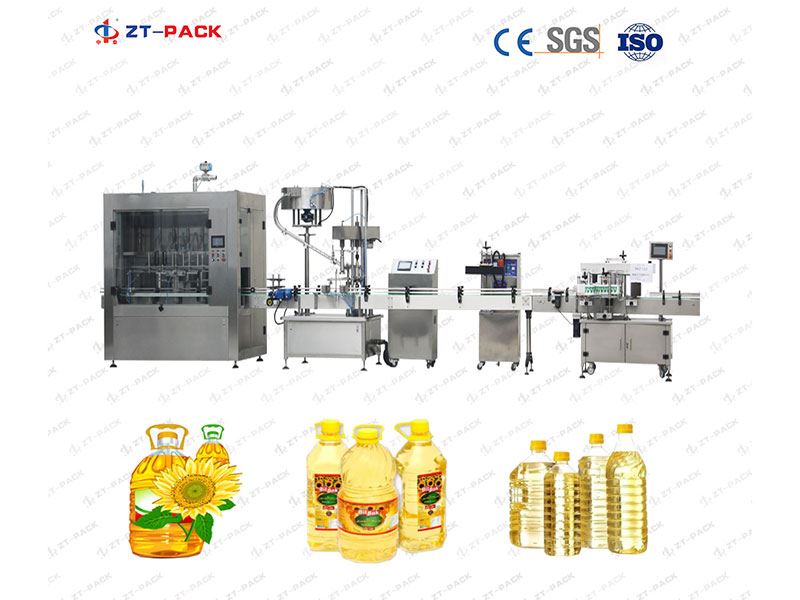

1L-5L Edible Cooking Oil Filling Line

1L-5L Edible Cooking Oil Filling Line
Suitable for filling
  • Suitable for filling: Cooking edible oil, peanut oil, vegetable oil, etc.
  • Filling system: Piston, flow meter (can be chosen according to actual application)
  • Bottle type: Plastic bottles (jerrycan)
  • Bottle shape: Round & flat
  • Bottle size: 1L-5L
  • Accuracy: 0.2% (piston type)/ 0.5% (flow meter type)
  • Capacity: 800-2500BPH (5L)
  • High adaptability: No parts need to change, when bottle size varies
  • Machines included (optional): bottle unscrambling - filling - capping - induction sealing - labeling - date printing - carton packaging - palletizing
Inquiry
Edible oil filling lines with different capacities can be chosen
6 Filling nozzles 8 Filling nozzles 10 Filling nozzles 12 Filling nozzles
Piston system Flow meter system
0.5L 1,500 BPH 0.5L 2,500 BPH 0.5L 3,200 BPH 0.5L 4,200 BPH
1L 1,300 BPH 1L 2,300 BPH 1L 3,000 BPH 1L 4,000 BPH
4L 700 BPH 4L 1,000 BPH 4L 1,800 BPH 4L 2,400BPH
5L 600 BPH 5L 900 BPH 5L 1,500 BPH 5L 2,200 BPH

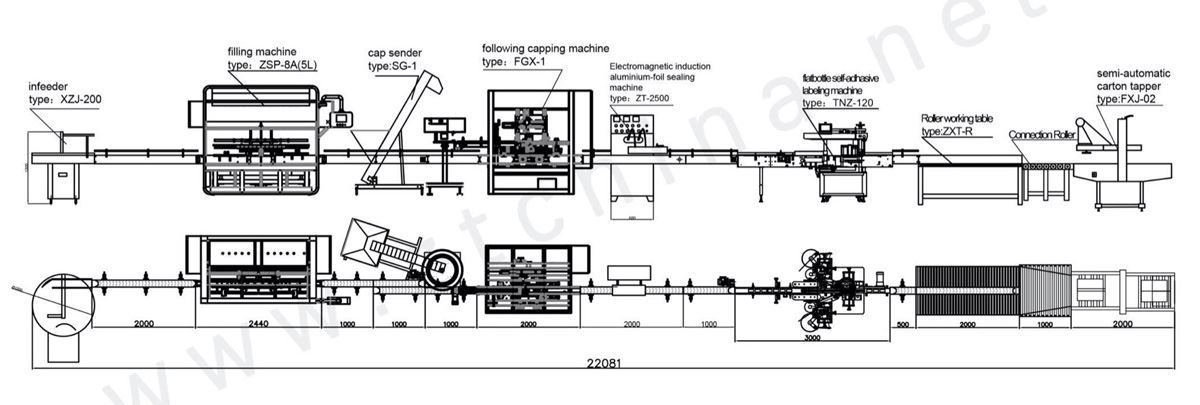

Layout drawing
Layout drawing
